Metabase: An Open-Source Business Intelligence Tool for AI & ML

• Business Intelligence
• By: Selvakumar Ulaganathan, PhD

Introduction

Effective presentation and interactive visualisation of outputs from various machine learning models are vital aspects of bringing Artificial Intelligence (AI) and Machine Learning (ML) close to actual businesses. In this respect, Business Intelligence (BI) tools play a significant role in bringing various AI & ML insights into the hands of business experts. The typical work-flow of BI tools, at least in the context of AI & ML, includes the followings:

To this end, BI tools often come up with features such as capabilities to create various plots and dashboards, easy integration with various database systems, etc. Although it is subject to the problem (or rather the business requirement) at hand, I often weigh the BI tools based on the following features:

I recently came across an interesting open-sourced BI tool called Metabase. As a basic-level user of Qlik, I was quickly impressed by the simplicity of Metabase. In this article, I will discuss about various aspects of building an AI dashboard using Metabase, and deploying it in AWS.

Metabase in AWS

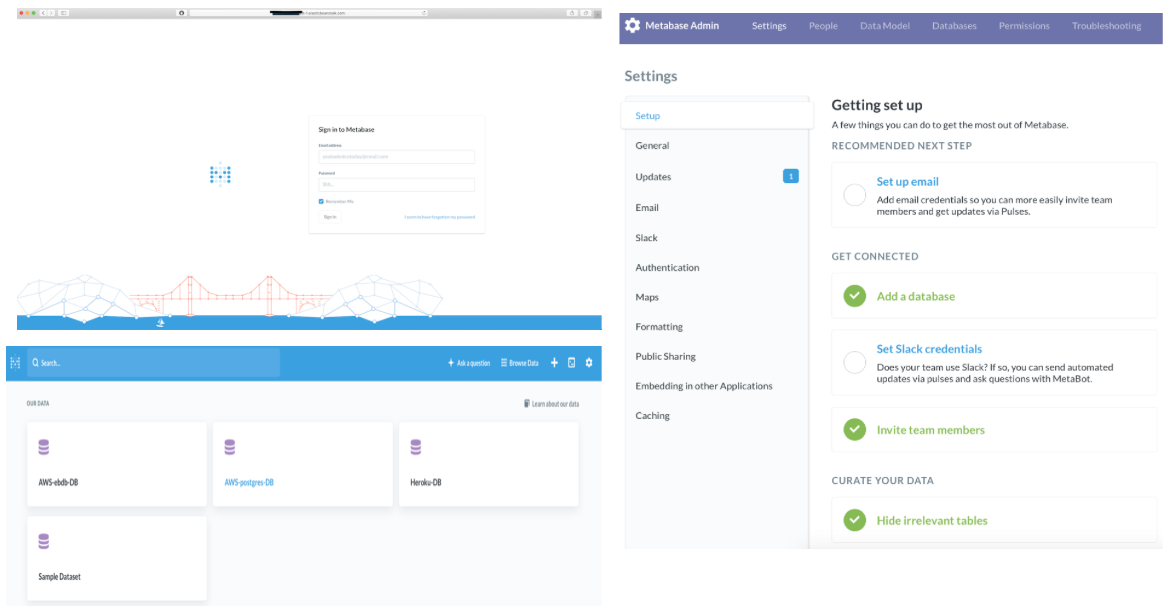

I used AWS Free-Tier account in order to deploy Metabase in AWS for free. Metabase works very well with a basic EC2 T3 instance (either type micro or small). EC2 in Free Tier comes up with 750 free hours per month which was good enough for my case. In order to deploy the application in AWS, you can refer to one of these links: Metabase easy deployment , Metabase custom deployment or Youtube video . The following figure provides a snapshot of various application-level interactions such as logging-in, listing-DBs, setting up datamodel & authentication, etc. More information on the first-level application setup can be obtained from the official documentation.

Database Integration

As any other BI tool, Metabases receives data from databases. Some of the databases which are currently supported by Metabase include:

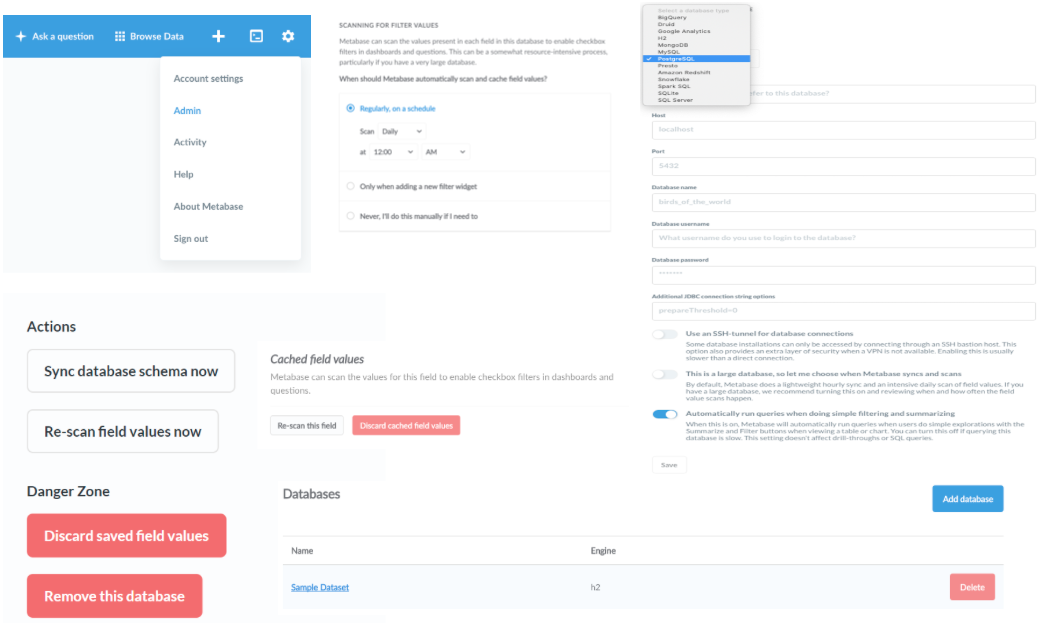

A database can simply be integrated by accessing the Admin:DATABASES portal of metabase as shown in the following figure. Metabase does not save a copy of the original data located at the remote databases. Thus it is important to activate the database synching options. Metabase syncs every hour by default although it can be customised to business needs. If the DB is significantly large in size, then the synching can be performed manually whenever necessary. SSH tunneling features are available to keep the database connections secure. More information on database management in Metabase can be obtained from here.

Plots and Dashboards in Metabase

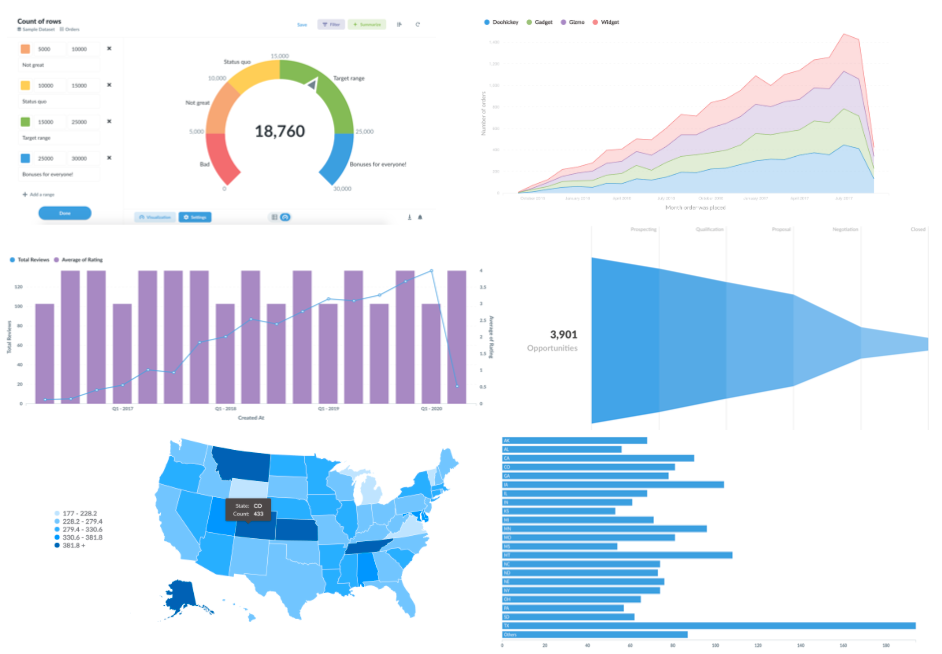

Plots are referred to as Questions in Metabase. Plots can be created either by selections or SQL queries. In the case of creating questions via selection, access to the plotting portal can be obtained once the data (e.g., a table from a Postgres DB) is selected from one of the integrated DBs. On the contrary, an inbuilt SQL editor is available to create advanced questions using native SQL queries. Some of the plot types which are currently supported by Metabase include (refer here for more information):

Once individual plots or questions are created, they can be simply grouped to create dashboards as shown in the following figure. Various filtering options can be employed to navigate through the dashboard effectively. Data from the plots can be easily downloaded in various forms (e.g., csv, json, etc.). Public sharing can be activated in order to share (or to embed publicly in web pages & blogs) the plots and dashboards to anyone with the link. This way business insights can be shared across many people (or platforms) without them having to install Metabase.

Highlights

Metabase is definitely a promising BI tool for simple AI & ML business applications. Although it is subject to individual business needs, the following aspects may help individuals or organisations to weigh Metabase against other open-source (or possibly commercial too!) BI tools:
